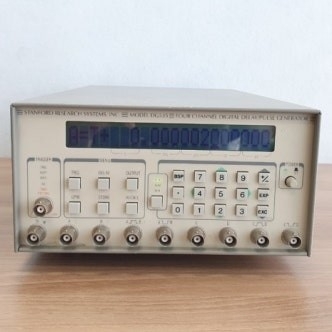

Stanford Research DG535 Four Channel Digital Delay Generator, 1 MHz, 4 V

The DG535 is a very precise delay and pulse generator featuring four precision delays or two independent pulses with 5 ps resolution.

These units all have a standard GPIB Interface which was previously denoted as Option 01.

Features:

Delay range: 0 to 999.999,999,999,995 s

Delay resolution: 5 ps

Rate generator: single shot 0.001 Hz to 1.000 MHz

Rate generator resolution: 4 digits, 0.001 Hz below 10 Hz

Output amplitude: -3.00 V to +4.00 V (¡¾35 V with option 02)

Polarity: pos and neg outputs

Option 03 adds 1 ppm TCXO Timebase

GPIB (IEEE-488) interface

Display: backlit LCD

Output connectors: BNC(f)

100, 120/220, 240 Vac; 50/60 Hz operation

Weight: 10 lb; Size: 121 mm (4.75 in)H x 216 mm (8.5 in)W x 355 mm (14.0 in)D
